Equipment Portfolio
Wire & Cable Manufacturing Equipment
Complete range of wire and cable manufacturing equipment from leading international brands โ representing quality, compliance, and performance for India's cable industry.
โ๏ธ Armouring

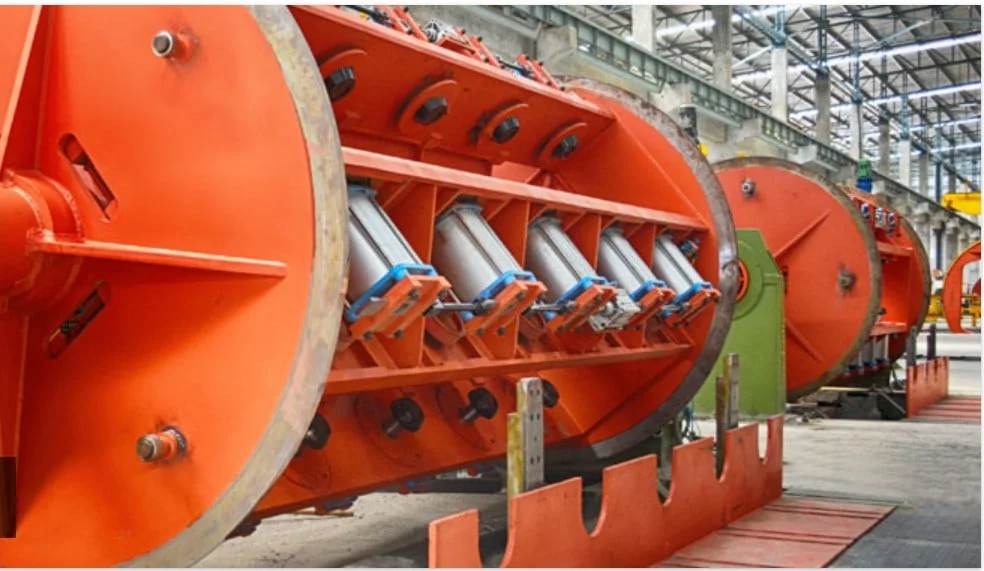

Armouring Machine
Used for armouring of strip/round wire on insulated core as well as to laid-up of multi-core cables. Manufactured in different designs as per customer requirements.
- Fork type and cage type designs
- Single cage or double cage (tandem)
- With or without batch loading
- Heavy duty with self-locking system
- Motorised bobbin pintles with safety interlock
- Wire break detection system per cage
๐ Fork Type

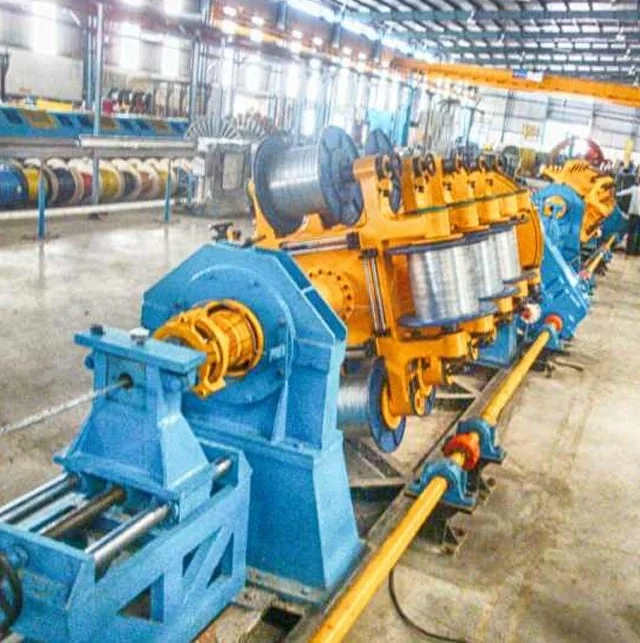

Fork Type with Manual Bobbin Loading
Specialized fork-type cage armouring machine with advanced features for precise, reliable wire application on cable cores.
- Auto-regulated mechanical/pneumatic constant bobbin tension
- Individual control box for each bobbin
- Light indication for each bobbin closed
- Visual aid for faster process
๐ถ Taping

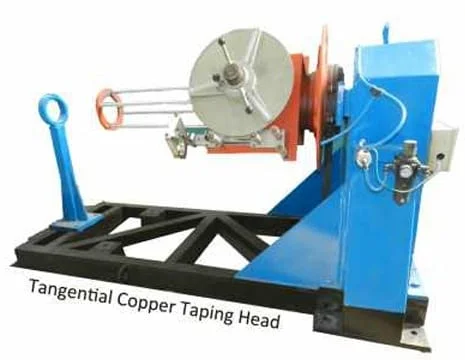

Copper Taping Line
Used for copper taping on high and extra high voltage cores โ also used for taping of non-metallic tapes including Cotton, PVC, HDPE, and semiconductor tape.
- High and extra high voltage core taping
- Non-metallic tape compatibility
- Cotton / PVC / HDPE / semiconductor tape
- Adjustable tape overlap settings
๐ Laying Up

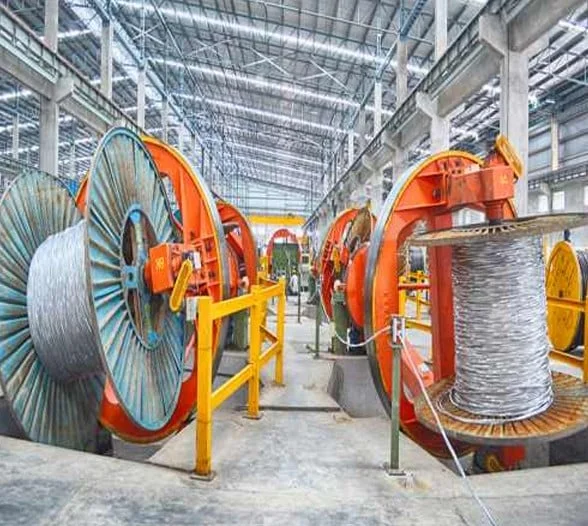

Drum Twister Line
Used for laying up of power cable of low voltage sector/round and high voltage core โ also used for cable armouring with steel wire or screening of HV core.
- Low voltage sector & round cable laid-up
- High voltage core laid-up
- Steel wire armouring capability
- Aluminium/copper wire screening for HV/EHV
๐ Stranding

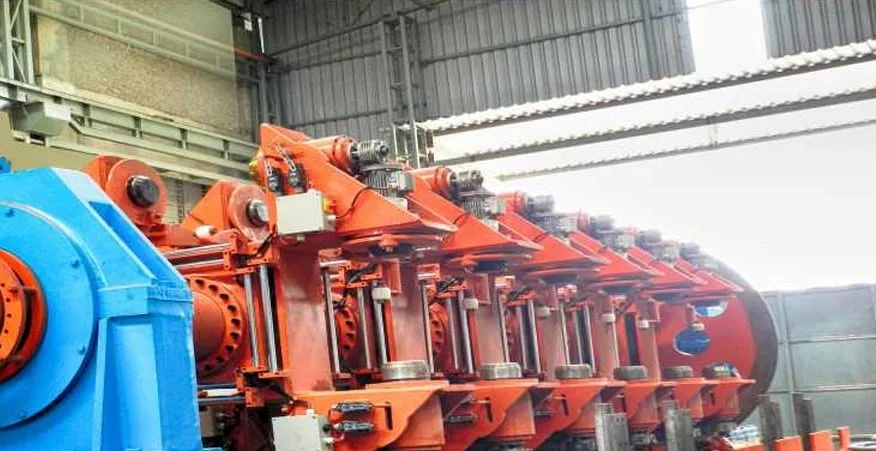

Stranding Machine
Used to make stranded and compacted conductors for power cables and flexible cables โ essential for high-conductivity, low-resistance conductor manufacturing.
- Stranded conductor production
- Compacted conductor capability
- Power cable applications
- Flexible cable conductor manufacturing
โ๏ธ Equipment

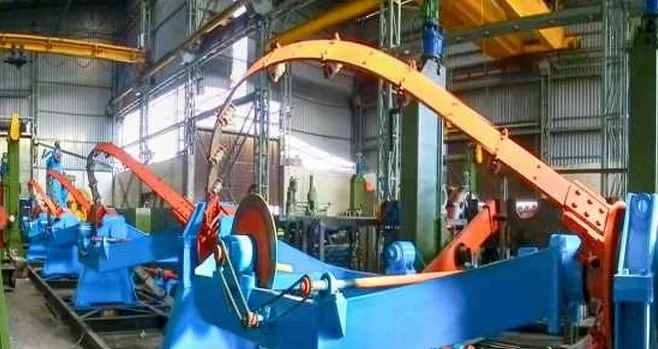

Skip Bow Strander
Used for stranding of bare [EC/AAC/AAAC/ACSR] / insulated, aluminium / copper conductor. Configuration as per customer requirement.
